Oscilloscope Machine with Signal Display

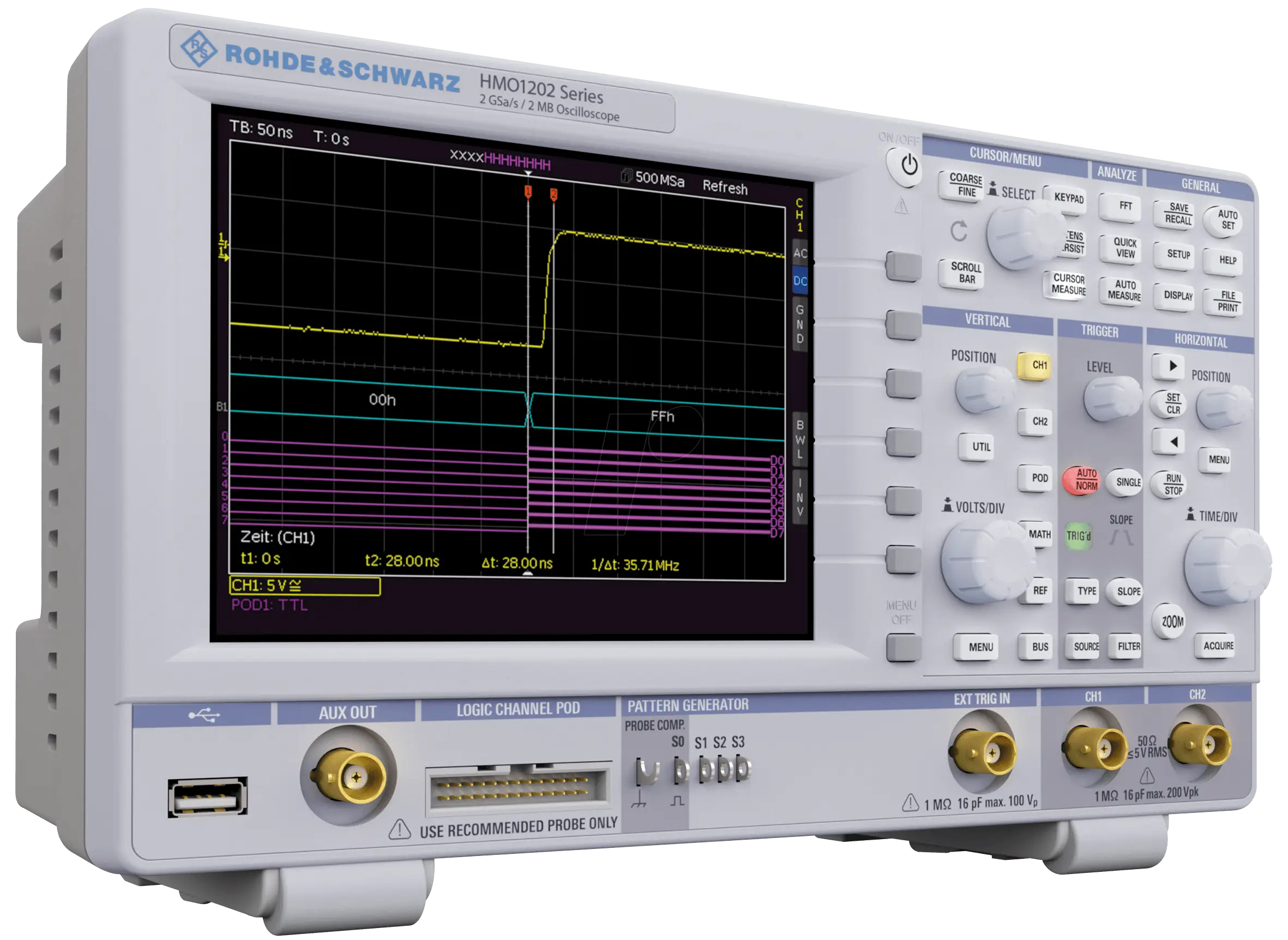

A Rohde & Schwarz HMC1202 Series oscilloscope is prominently featured, displaying multiple electrical signal waveforms on its screen, including square waves and what appears to be digital logic signals. The instrument's front panel is visible, showcasing a range of control knobs and pushbuttons for functions like vertical and horizontal scaling, triggering, and measurement. Below the main display, several input/output ports are visible, including a USB port, BNC connectors for signal inputs (labeled "ANT IN," "CH1," "CH2"), and a multi-pin connector for a logic channel probe. This professional-grade test equipment is essential for engineers and technicians working with electronics.

oscilloscope - electronics - test equipment - waveform - signal - measurement - digital - lab equipment
